BERNARDO SOLID 460 1500 Vario Digital lathe conventional electronic
turning length 1500 mm
turning diameter 460 mm
swing diameter over bed slide 274 mm
turning dia. in gap 690 mm
spindle bore 58,0 mm
turning speeds 30 – 2.000 U/min
bed width 300 mm
spindle taper 55029 D 1-6
taper in tailstock 4 MK
quill travel 130 mm
total power requirement 5,5 kW
weight of the machine ca. 2020 kg.
range L-W-H 2750x1080x1370 mm
scope of delivery

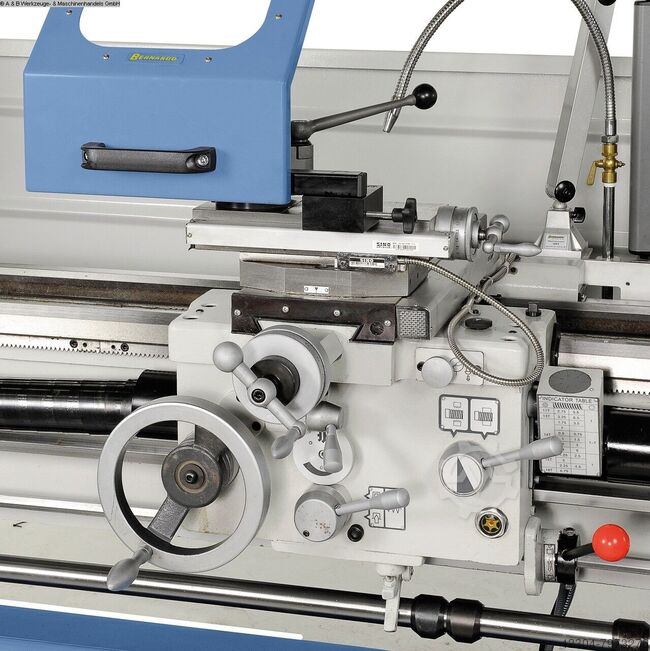

– 3-axis digital display ES-12 V with LCD display
– 3-jaw chuck PS3-250 mm / D8

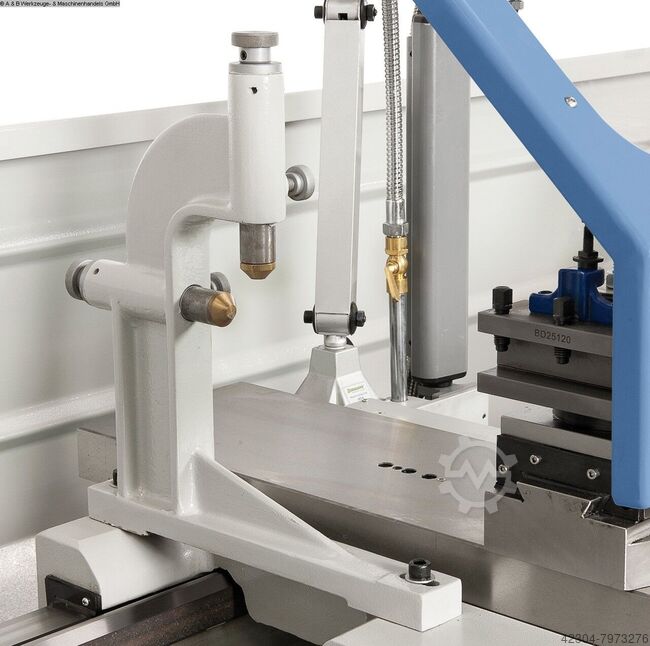

– Fixed bezel – passage diam. max. 150 mm
– Live steady rest – passage diam. max. 110 mm
– First filling with Shell Tellus 46

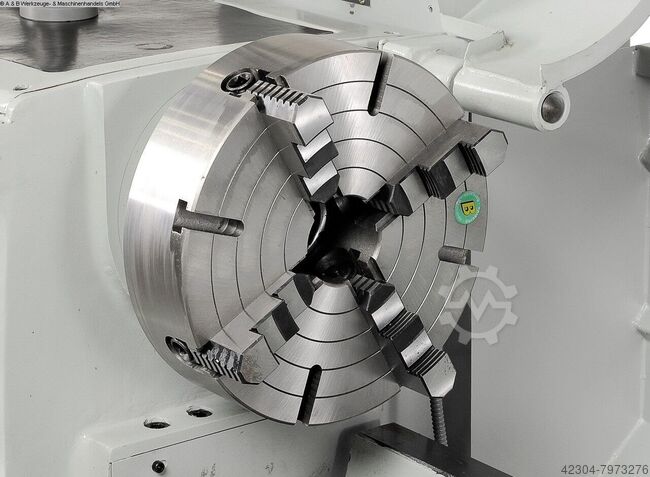

– clamping disc 350 mm
I2ilc0933
– Quick change tool holder with 4 inserts
– Protective device for quick-change tool holders
– Foot pedal with brake function according to CE
– coolant device
– Frequency converter
– slip clutch

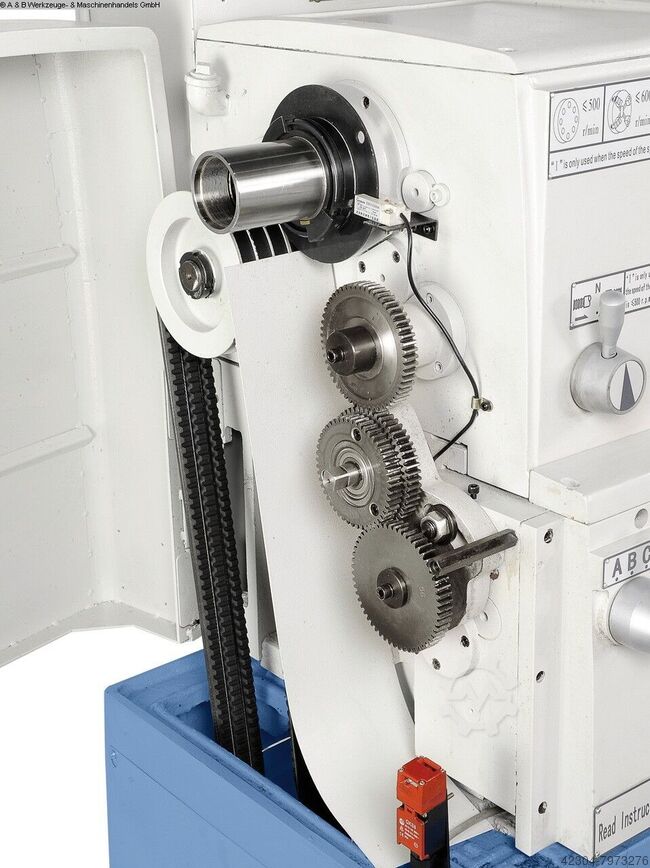

– change gears
– reducing sleeve
– 2 center points
– Thread clock
– LED machine light
– Chip back wall
– operating tool
