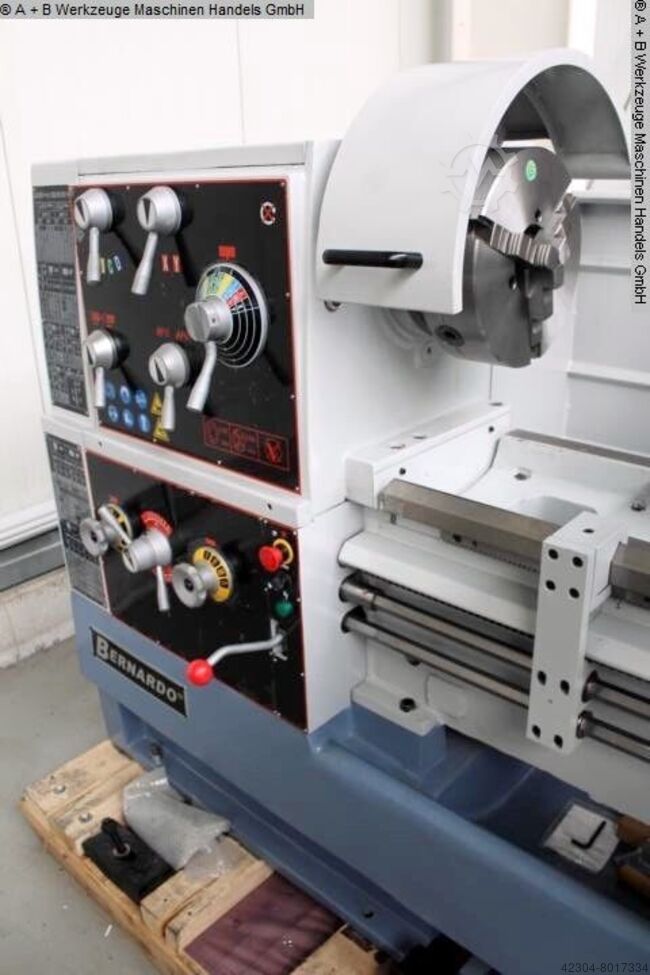

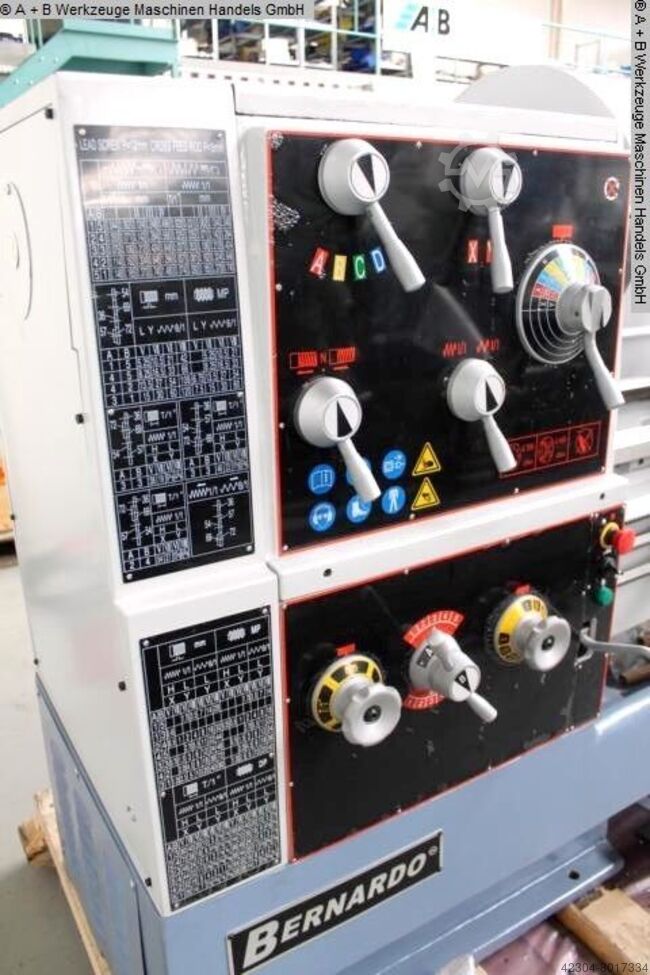

BERNARDO TITAN 800 3000 Digital lathe conventional electronic

turning length 3000 mm
turning diameter 800 mm
turning dia. in gap 1000 mm
turning diameter over slide 540 mm
turning speeds 25 – 1600 U/min
quill: 5 MK
quill travel 235 mm
spindle bore 105,0 mm
engine output 7,5 kW
spindle taper DIN 55029 D 1-8
weight of the machine ca. 3820 kg.
dimensions 4800 x 1320 x 1580 mm

Scope of delivery
– 3-axis digital display ES-12 V with LCD display
– Cable routing via energy chain
– 3-jaw chuck PS3-315 mm / D8
– Clamping disc 500 mm
– Fixed bezel – Passage diam. 180mm max
– Revolving bezel – passage diam. 100mm max
Cej8d2fw
– 2 center points
– Motor with magnetic brake according to CE standard
– Foot pedal with brake function according to CE
– First fill with Shell Tellus 46
– Rapid traverse longitudinal and face
– slip clutch
– Cooling device
– Quick change steel holder with 4 inserts
– Protective device for quick-change tool holder
– LED machine light
– Change gears
– Reducing sleeve
– chip rear wall
– Operating tool
