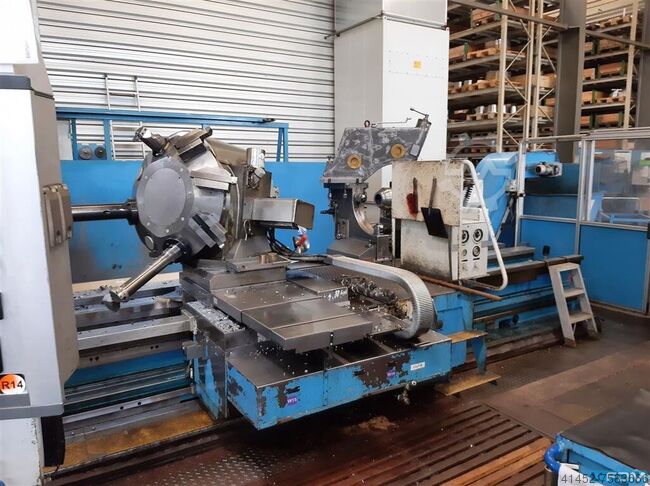

HEYLIGENSTAEDT Nb 630 III 10 x 3500 CNC Lathe
turning diameter:1240 mm
Fj20h89fs
turning length:3500 mm
total power requirement:150 kW
turning diameter over bed slide:970
spindle bore:163 mm
max. workpiece weight between centres:10000 kg
spindle turning speed range:2,4 – 120 / 12 – 600 U/min
power maindrive:60 kW
dimensions of the machine ca.:12 x 4,1 x 2,7 m
weight of the machine ca.:20 t
Machine was overhauled in 2010
CNC SIEMENS 840 D
power chuck diameter 1000 mm
8 station turret head
steady 200 – 650 mm
chip conveyor , coolant attachment
