KRAFT DLZ 250 Serie Center Lathe
turning diameter over bed:502 mm
turning diameter over slide rest:310 mm
turning length:1000/1500 mm
centre height:250 mm
bed width:300 mm
max. workpiece weight between centres:450/750 kg
:225 kg
spindle bore:58 (opt. 105) mm
spindle turning speed range:40-2300 (3 Getriebestufen) U/min
spindle nose:A2-6 (A2-8 opt.)
longitudinal feed:0,05-0,752 mm/U
cross feed:0,022-0,296 mm/U
metrical thread cutting:0.5 – 7,5 mm/U
threading WHITWORTH:60-4 TPI
range of module thread:0,25-3,75 mm
:120-8 mm/min.
diameter of quill:69 mm
sleeve conus:4 MK
Mewcf
quill stroke:200 mm
power requirement:5,5 kW
center morse:2 Stück

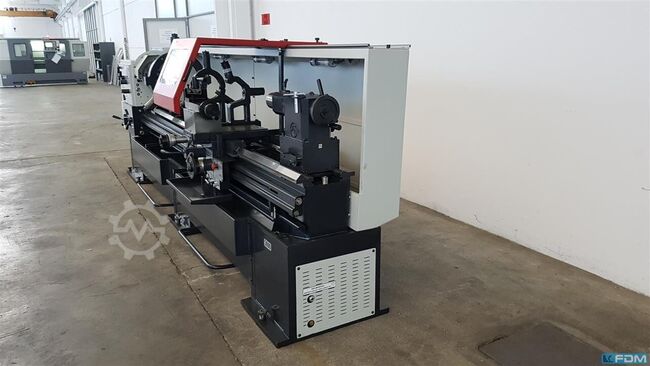

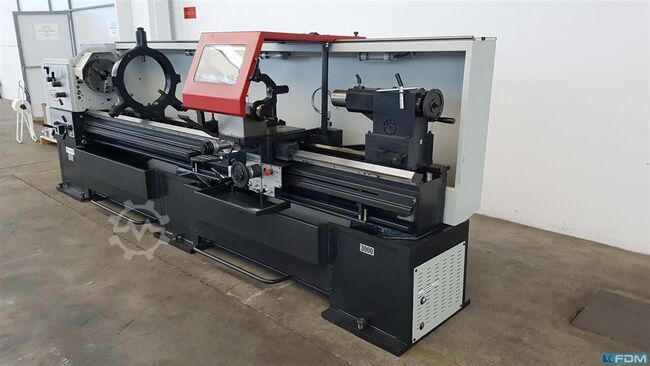

Brand new Center Lathe KRAFT DLZ 250 Series
More information can be found in the appendix
