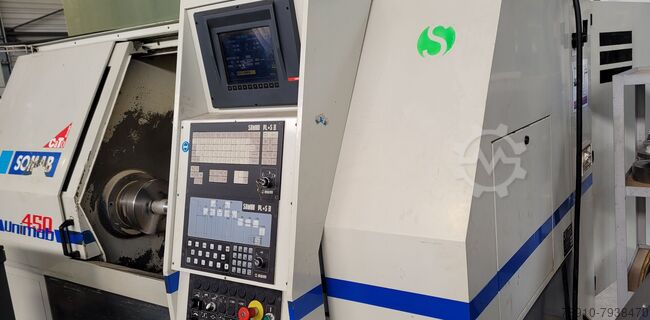

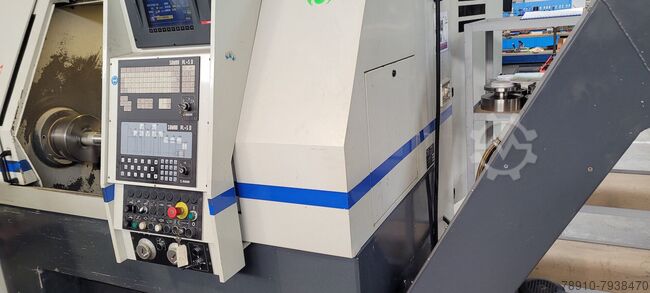

Somab UNIMAB 450 2 axis CNC lathe MAKE AN OFFER
Technical data :

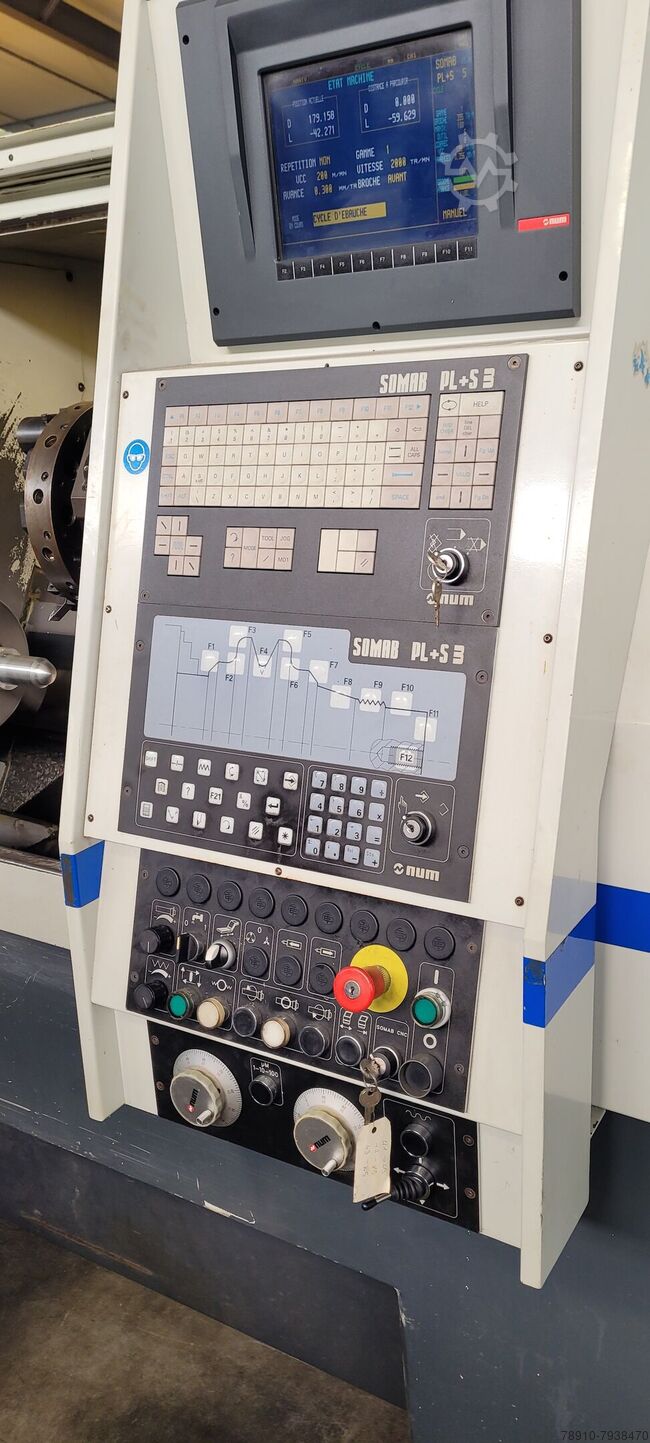

PL+S digital control
Diameter above the bench: 500 mm
Diameter on the slide: 320 mm
Distance between centres: 1100 mm
Cigmyvcofg
Longitudinal stroke Z : 950 mm
Transverse stroke X: 240 mm
Spindle nose: 8″
Spindle bore: 73 mm
Maximum speed: 4500 rpm
Power: 20/30 kW
Chuck: 250 mm
Chuck bore: 73 mm
Turret 12 stations
