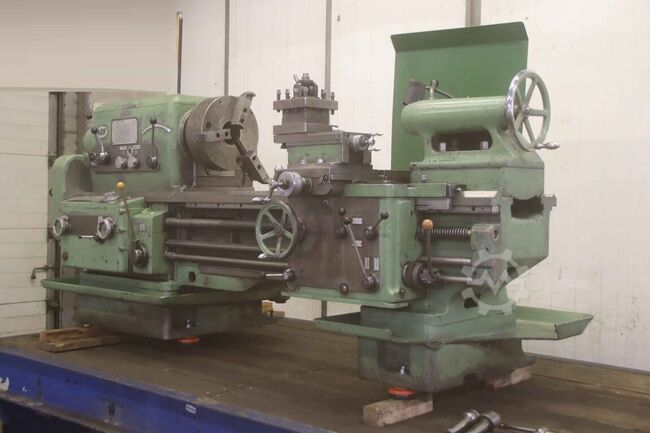

VDF** V5K Lathe 700×1400 mm spindle bore Ø 128 mm
Heavy duty lathe, lathe, lathe, center lathe and lathe, center lathe
-Manufacturer: VDF, master and feed spindle lathe type V5K
U9csj7jy
-Turning length: 1400 mm
-Swivel O over bed: 700 mm
-Rotating O without bed: 1000 mm
-Rotating O over support: 450 mm
– Large spindle bore: O 128 mm
-Spindle speeds: 14 – 710 rpm
-Key bar chuck: O 400 mm Forkardt
-Quick change: Quadruple steel holder
– Tailstock mount: MK5
-Drive motor: 11 kW
-Dimensions: 3440/1380/H1340 mm
-Weight: 4030 kg
