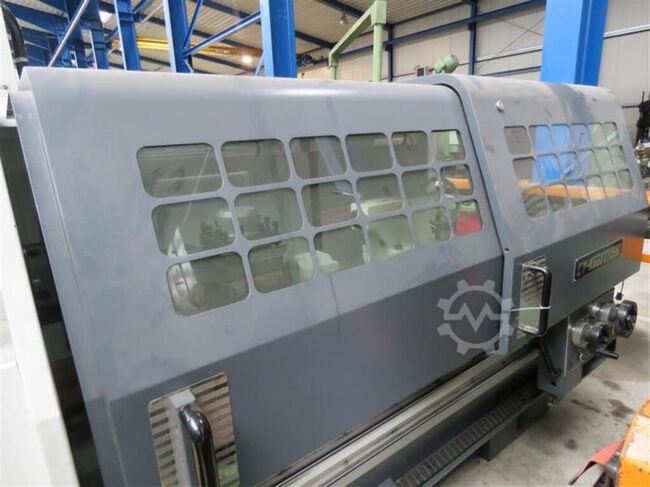

YUNNAN CY K660T CNC Lathe
turning diameter 660 mm
turning length 1500 mm
control FAGOR
centre height 330 mm
spindle passage 82 mm
number of spindle speeds 30-2000 U/min
bed width 390 mm
rapid speed X/Z 4 – 8 m/min
tailstock quill diameter 75 mm
Main spindle capacity 15 kW
weight of the machine ca. 3,2 t
dimensions of the machine ca. 3,8 x 1,8 x 2,15 m
control
Cpgsadly
– FANUC Series 18i TB Control, Manual Guide i Function
– Central control panel for machine and CNC control on the pedal arm 45 °
swiveling
– 12-fold tool turret
– Fanuc drive with 30 kW (50% ED)
– Chip conveyor
– Bezel
– 3 jaw chucks
